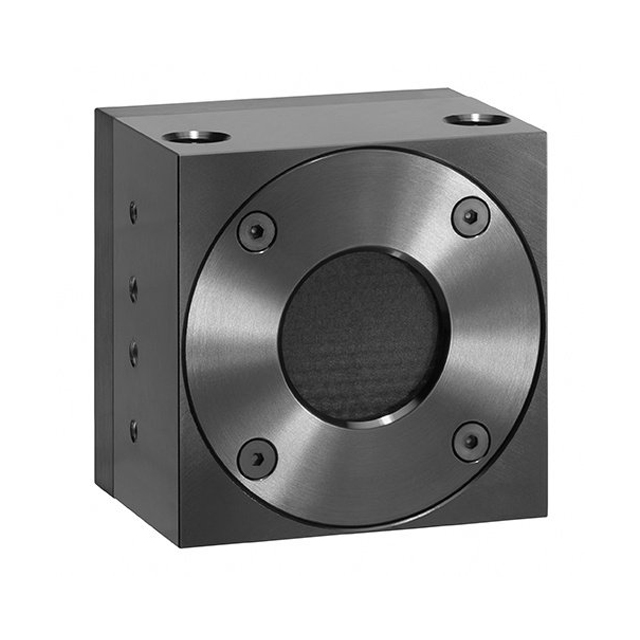

The 100W-AXL-UAF is a very fast response (~50ms) OEM thermal power laser measurement sensor with a 26mm aperture. It can measure from 400mW to 100W (water cooled only). It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has analog and RS232 output.
100W-AXL-UAF Drawing
| Aperture | ?26mm |
| Spectral Range | 0.19-20μm |
| Power Range | 400mW-100W |
| Energy Range | NA |
| Dimensions | 60 L x 60 W x 45 D (mm) |
| Max Average Power Density | 0.4kW/cm2 |
| Response Time | 50 ms 0-90% |
| Max Energy Density(for <100ns) | 1.5J/cm2 |
| Max Energy Density(for 2ms) | 15J/cm2 |
| Max Average Power | 100W water cooled |
| Communication | RS232, Analog |
