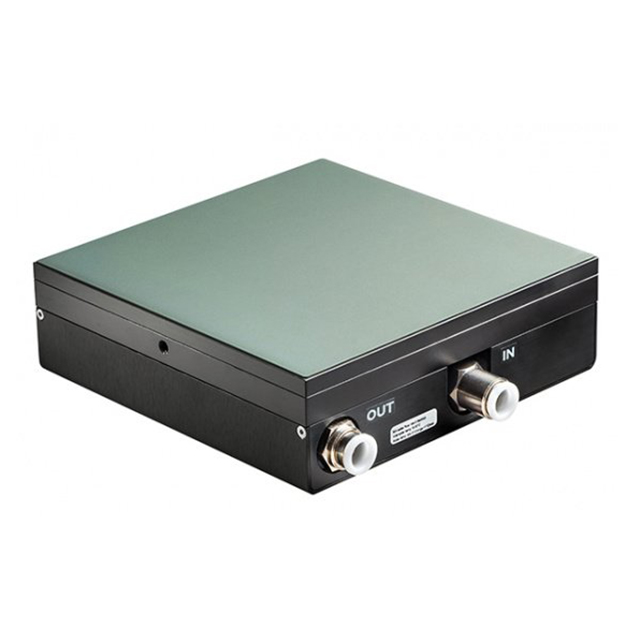

The 6K-W-BB-200x200 is a calorimetric water cooled thermal power/energy laser measurement sensor (which measures input and output water temperature and flow rate). The sensor measures high powers with a very large 198x198mm aperture. It can measure power from 200W to 6,000W. It covers the spectral range from 0.19 - 20μm. The sensor has two operation modes:
Supplied standard 5 meter cable for connecting to a meter or PC interface with StarLab PC App to display power only.
Supplied RS232 cable for connecting directly to a PC with WaterFlowMeter PC App to display power, water temp. and water flow rate.

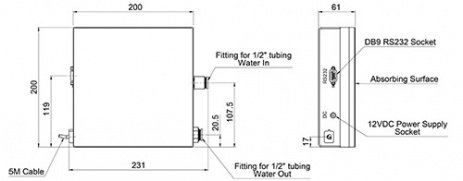

6K-W-BB-200x200 Drawing
| Absorber Type | Broadband |
| Aperture | 198 x 198 mm |
| Spectral Range | 0.19-20μm |
| Power Range | 200W-6000W |
| Energy Range | N.A. |
| Backscattered Power | N.A. |
| Dimensions | 200 L x 200 W x 61 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 0.4kW/cm2 |
| Response Time | 50 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 10J/cm2 |
| Max Average Power | 6000W |
| BeamTrack Functions | N.A. |
