Mightex High-Power Lightguide Coupled LED Sources

Updated:2025-03-13

Brand: Mightex
Model: GCS-series
Description: Mightex GCS-series high-power LED sources are designed for high-efficiency coupling of LED light into a liquid lightguide (LLG) or a fiber optic bundle. Virtually all lightguides with core diameters r
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Mightex High-Power Lightguide Coupled LED Sources Description：

Datasheet

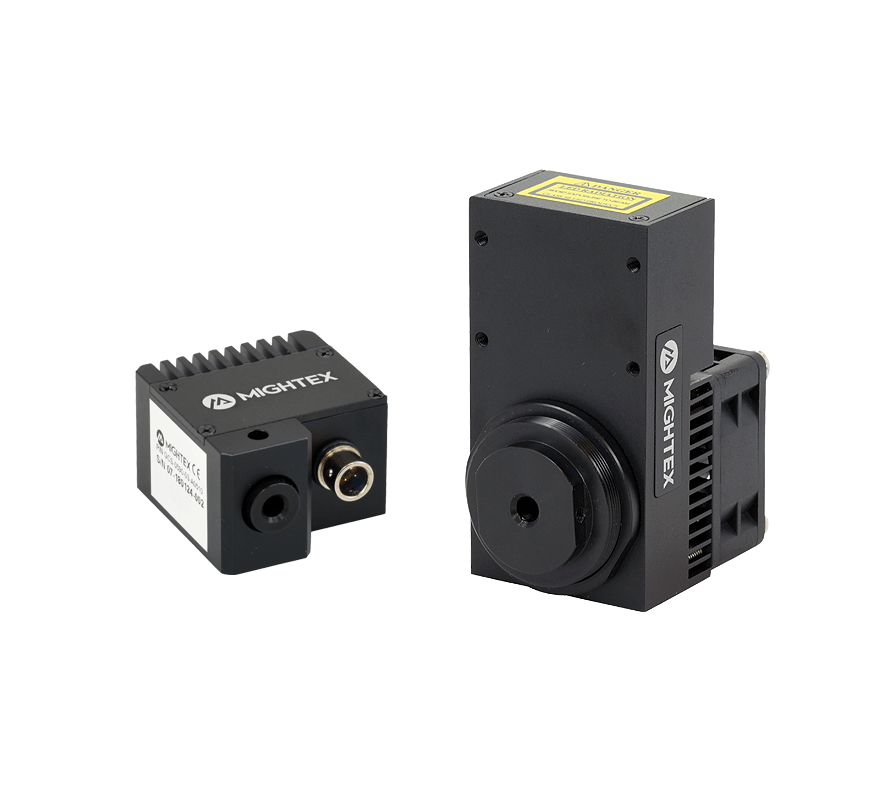

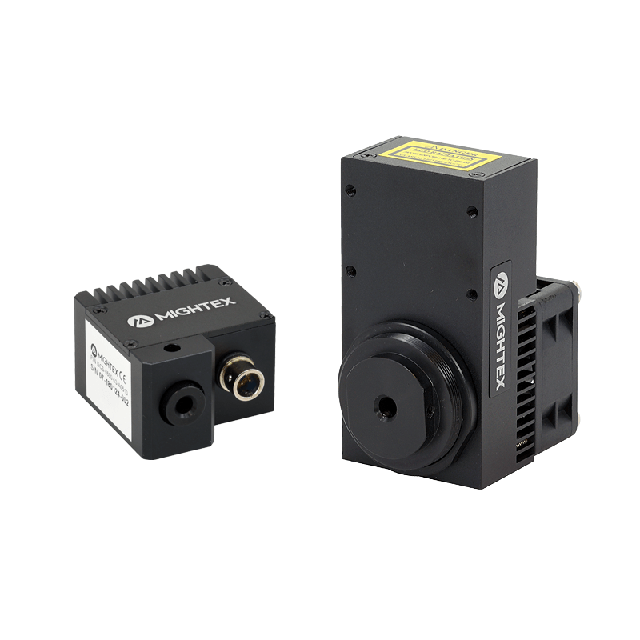

Mightex GCS-series high-power LED sources are designed for high-efficiency coupling of LED light into a liquid lightguide (LLG) or a fiber optic bundle. Virtually all lightguides with core diameters ranging from 3mm to 8mm can be used with the GCS-series light source. Please note that lightguides and adapters are sold separately. GCS series also features a locking electrical connector for secured connection. GCS series are designed as a universal light source for general lab use and OEM applications. All Mightex LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the GCS-series light sources. The one-piece machined aluminum alloy housing features integrated heatsinks and multiple mounting holes.

Multi-chip LED emitters have been added to the product portfolio (Type-B). Some of these 7W to 15W LEDs have total optical power exceeding 1W, quadrupling the power of a single-chip LED (Type-A). Models with higher powers (i.e. Type-B with 7W and higher) feature a cooling fan, and have a different form factor compared to other models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED sources.

To drive a GCS LED source, one can use any one of the wide range of LED controllers Mightex has to offer:

Software controlled LED controllers;

Manual LED drivers.

FEATURES

High output power

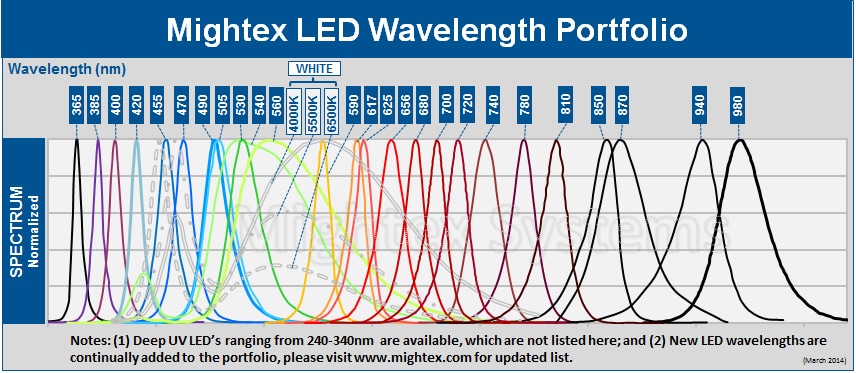

Broad wavelength selections in VIS, UV and NIR

Interchangeable liquid lightguides or fiber bundles

Compact, machined metal housing with integrated heat sink

Multiple mounting features for lab and OEM applications

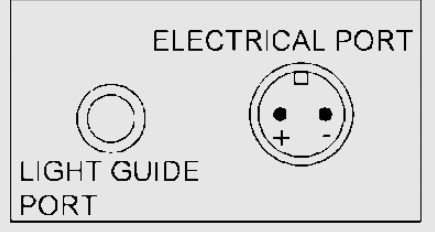

Locking electrical connector

Locking electrical connector

Microscopy

Fluorescence

Machine vision

Sensors

Semiconductor equipment

Testing instruments

Medical instruments

Specifications

Type-A GCS (passively cooled with no cooling fan)
Type-B GCS (with a cooling fan)

Part Number⁽¹⁾	Wavelength Code	Type⁽²⁾	Description	Wavelength(nm)	I_op (mA)	V_op (V)	Typical Radiant Flux(mW) ⁽³⁾
GCS-0310-03-xxxx	0310	A	DUV 310nm	310	600	5.8	24
GCS-0325-03-xxxx	0325	A	DUV 325nm	325	600	4.7	14
GCS-0340-02-xxxx	0340	A	DUV 340nm	340	350	4.3	12
GCS-0365-04-xxxx	0365	A	UV 365nm	365	1000	3.65	220
GCS-0365-13-xxxx	0365	B	UV 365nm, 13W	365	3500	3.85	950
GCS-0380-03-xxxx	0380	A	UV 380nm, 3W	380	1000	3.2	80
GCS-0385-04-xxxx	0385	A	UV 385nm	385	1000	3.65	300
GCS-0385-07-xxxx	0385	B	UV 385nm, 7W	385	500	15	330
GCS-0385-11-xxxx	0385	B	UV 385nm, 11W	385	700	15.5	410
GCS-0385-13-xxxx	0385	B	UV 385nm, 13W	385	3500	3.75	1180
GCS-0390-03-xxxx	0390	A	UV 390nm	390	1000	3.1	165
GCS-0395-03-xxxx	0395	A	UV 395nm	395	1000	3.1	180
GCS-0400-03-xxxx	0400	A	UV 400nm, 3W	400	1000	3.1	175
GCS-0405-03-xxxx	0405	A	UV 405nm	405	1000	3	215
GCS-0410-03-xxxx	0410	A	410nm	410	1000	3	210
GCS-0415-03-xxxx	0415	A	415nm	415	1000	3	210
GCS-0430-02-xxxx	0430	A	430nm	430	500	3.8	130
GCS-0455-03-xxxx	0455	A	Royal Blue	455	1000	3.0	300
GCS-0470-03-xxxx	0470	A	Blue	470	1000	3.2	130
GCS-0470-15-xxxx	0470	B	Blue, 15W	470	1000	15	400
GCS-0471-04-xxxx	0471	A	Blue	471	350	3	95
GCS-0490-01-xxxx	0490	A	490nm	490	350	3.5	85
GCS-0505-04-xxxx	0505	A	Cyan	505	1000	3.9	30
GCS-0505-12-xxxx	0505	B	Cyan	505	1000	12.2	200
GCS-0530-03-xxxx	0530	A	Green	530	1000	2.85	120
GCS-0530-15-xxxx	0530	B	Green, 15W	530	1000	15	180
GCS-0560-02-xxxx	0560	A	560nm, broadband	560	700	2.9	120
GCS-0590-03-xxxx	0590	A	Amber	590	1000	3.2	35
GCS-0617-02-xxxx	0617	A	Red-Orange	617	700	2.3	100
GCS-0617-07-xxxx	0617	B	Red-Orange, 7W	617	700	9.6	175
GCS-0625-03-xxxx	0625	A	Red	625	1000	3	100
GCS-0625-07-xxxx	0625	B	Red, 7W	625	700	9.6	200
GCS-0700-01-xxxx	0700	A	700nm	700	500	2.1	35
GCS-0720-01-xxxx	0720	A	720nm	720	600	2.2	50
GCS-0740-03-xxxx	0740	A	740nm	740	1000	2.9	130
GCS-0810-02-xxxx	0810	A	810nm	810	800	2.2	80
GCS-0850-03-xxxx	0850	A	850nm	850	1000	3	150
GCS-0870-01-xxxx	0870	A	870nm	870	700	1.9	75
GCS-0910-02-xxxx	0910	A	910nm	910	1000	1.9	80
GCS-0940-02-xxxx	0940	A	940nm	940	1000	2.4	125
GCS-0980-01-xxxx	0980	A	980nm	980	500	1.4	20
GCS-3000-03-xxxx	3000	A	Warm White	3,000K	1000	2.8	80
GCS-3000-12-xxxx	3000	B	Warm White, 12W	3,000K	1000	12	240
GCS-4000-04-xxxx	4000	A	Warm White	4,000K	1000	3.9	95
GCS-5500-04-xxxx	5500	A	Cool White	5,500K	1000	3.9	95
GCS-5500-12-xxxx	5500	B	Cool White, 12W	5,500K	1000	12	300
GCS-6500-04-xxxx	6500	A	Glacier White	6,500K	1000	3.6	95
GCS-6500-15-xxxx	6500	B	Glacier White, 15W	6,500K	1000	15	300

Note: (1). “xxxxx” is the Lightguide Adapter code, see Lightguide Adapters table below (for Type-A GCS only); (2). Type-A, Type-B and Type-H LED sources have different installation drawings. Type-A does not include a cooling fan, whereas Type-B and -H does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V. For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm. The control module designed for Type-H light sources are BLS-13000-1E or BLS-18000-1 (sold separately), which is paired with the suitable AC/DC power adapter and does not require separate upgrade; and (3). Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Type-H GCS (high current, with a cooling fan)

Part Number⁽¹⁾	Wavelength Code	Type ⁽²⁾	Description	峰值Wavelength(nm)	I_op (A)	V_op (V)	Typical Radiant Flux(mW) ⁽³⁾
GCS-0365-76-xxxx	0365	H	UV 365nm, 50W	365	18	4.2	2600
GCS-0405-65-xxxx	0405	H	UV 405nm, 65W	405	18	3.6	1600
GCS-0415-65-xxxx	0415	H	Blue-Violet 415nm, 65W	415	18	3.6	1900
GCS-0470-50-xxxx	0470	H	Blue, 50W	470	13	3.8	2000
GCS-0470-61-xxxx	0470	H	Blue, 60W	470	18	3.4	2400
GCS-0525-60-xxxx	0525	H	Green, 60W	525	13	4.6	800
GCS-0525-79-xxxx	0525	H	Green, 80W	525	18	4.4	950
GCS-0560-68-xxxx	0560	H	560nm Broadband, 70W	560	18	3.8	1900
GCS-0625-38-xxxx	0625	H	Red, 38W	625	13	2.9	1700
GCS-0625-42-xxxx	0625	H	Red, 42W	625	18	2.3	2100
GCS-0730-77-xxxx	0730	H	NIR, 80W	730	18	5.9	1100
GCS-0780-65-xxxx	0780	H	NIR, 65W	780	18	3.6	1400
GCS-0850-68-xxxx	0850	H	NIR, 70W	850	18	3.75	2100
GCS-6500-33-xxxx	6500	H	Glacier White, 30W	6,500K	9	3.7	1200
GCS-6500-65-xxxx	6500	H	Glacier White, 65W	6,500K	18	3.7	2200

Note: (1). Maximum CW output achievable with a BLS-13000-1 BioLED control module. Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Discontinued Parts

Part Number⁽¹⁾	Wavelength Code	Type ⁽²⁾	Description	峰值Wavelength(nm)	I_op (mA)	V_op (V)	Typical Radiant Flux(mW) ⁽³⁾
GCS-0365-02-xxxx	0365	A	UV 365nm	365	500	3.8	90
GCS-0365-07-xxxx	0365	B	UV 365nm, 7W	365	500	15	300
GCS-0365-11-xxxx	0365	B	UV 365nm, 11W	365	700	15.8	375
GCS-0365-48-xxxx	0365	H	UV 365nm, 50W	365	12000	3.9	1300
GCS-0385-02-xxxx	0385	A	UV 385nm	385	500	3.8	100
GCS-0405-50-xxxx	0405	H	UV 405nm, 50W	405	13000	3.8	1500
GCS-0420-03-xxxx	0420	A	420nm	420	1000	3	205
GCS-0425-03-xxxx	0425	A	425nm	425	1000	3	195
GCS-0617-03-xxxx	0617	A	617nm	617	1000	3	100
GCS-0617-10-xxxx	0617	B	617nm	617	1000	10.8	175
GCS-0850-02-xxxx	0850	A	850nm	850	1000	2.1	125
