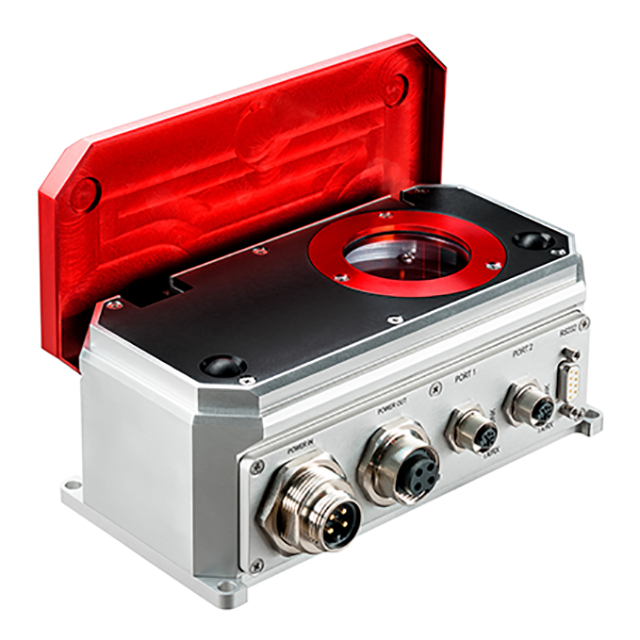

The Helios Plus - EtherNet/IP-M measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several seconds. The Helios Plus - EtherNet/IP-M measures the energy and exposure time of this sample of the power, and from this calculates the power. By keeping the pulse energy under 5 kJ, there is no need for water cooling and the sensor can be kept to a compact size. Helios Plus - EtherNet/IP-M is a version of Helios that has EtherNet/IP and RS232 communications, M12 connector for data, Mini 7/8" connector for power.
Helios Plus - EtherNet/IP-M Drawing
| Absorber Type | LP2, absorption ~94% |
| Aperture | ?50mm |
| Spectral Range | 450-550nm, 900-1100nm |
| Power Range | 50W-12kW |
| Energy Range | 100J – 5kJ |
| Backscattered Power | N.A. |
| Dimensions | 200 Lx145 Wx144 H (mm) - Open, 200 L x 122 W x 84 H(mm)-Closed Connectors: M12, Mini 7/8”, DB9 |
| Max Pulse Energy | N.A. |
| Max Average Power Density | N.A. |
| Response Time | 3 s |
| Max Energy Density (for <100ns) | N.A. |
| Max Energy Density (for 2ms) | 4kJ/cm2 |
| Max Average Power | 12kW |
| BeamTrack Functions | N.A. |
