The L50(150)A-BB-35 is a general purpose thermal power/energy laser measurement sensor with a 35mm aperture. It can measure from 100mW to 50W continuously and to 150W intermittently. It can measure energy from 40mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

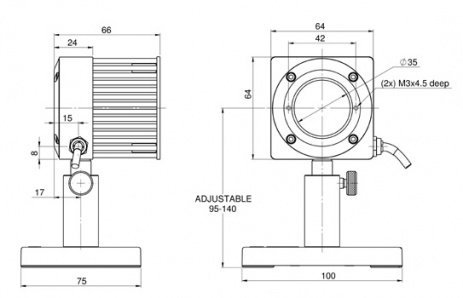

L50(150)A-BB-35 Drawing
| Absorber Type | Broadband |
| Aperture | ?35mm |
| Spectral Range | 0.19-11μm |
| Power Range | 100mW-150W |
| Energy Range | 40mJ-300J |
| Dimensions | 64 L x 64 W x 66 D (mm) |
| Max Pulse Energy | 300J |
| Max Average Power Density | 12kW/cm2 |
| Response Time | 2 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 10J/cm2 |
| Max Average Power | 150W |
