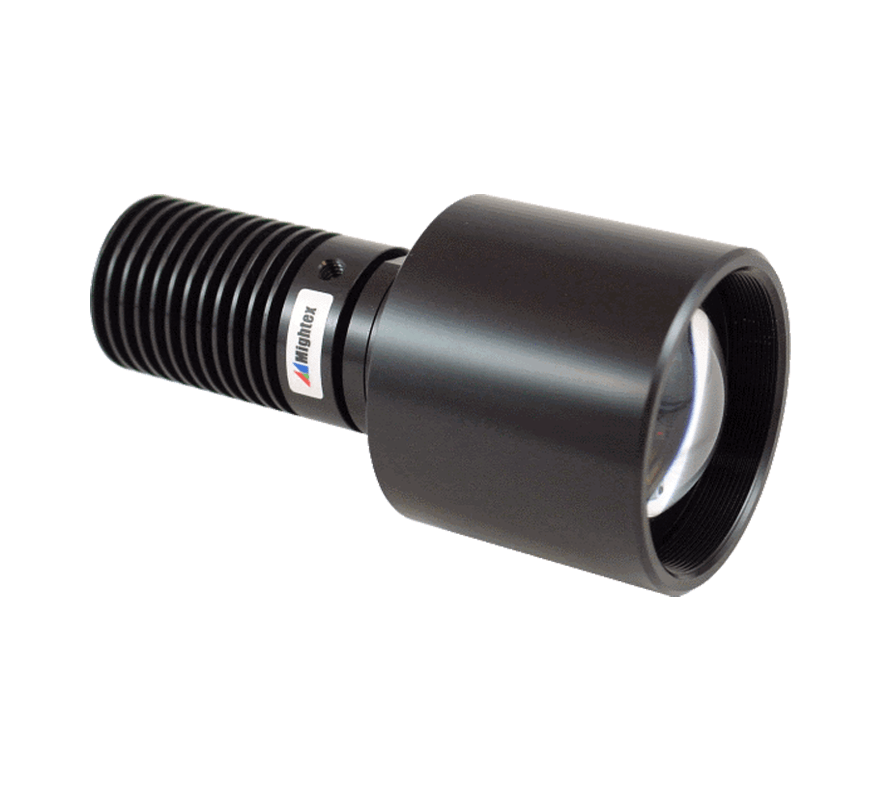

Mightex High-Power LED Collimator Sources, 38-mm Clear Aperture

Updated:2025-03-13

Brand: Mightex
Model: LCS-0385-04-xx
Description: An LED collimator consists of a collimating lens and an LED emitter. The LED emitter is placed at the focal plane of the collimating lens. The collimating lens thus images the LED emitter into infini
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Mightex High-Power LED Collimator Sources, 38-mm Clear Aperture Description：

Datasheet

An LED collimator consists of a collimating lens and an LED emitter. The LED emitter is placed at the focal plane of the collimating lens. The collimating lens thus images the LED emitter into infinity. Mightex LED collimators employ a high-NA aspherical collimating lens for precision collimation and high light throughput.

LED collimators can be used as the light source in an illumination system. For example LED collimators can replace the standard lamp assembly in a microscope to provide stable, intense, and fast-modulated illumination. Typically the rest of the illumination optics will image the LED emitter onto the pupil of the imaging optics whereas the lens aperture on the collimator where intensity is uniform will be projected onto the object. In other illumination applications similar arrangement should be made to produce uniform and efficient illumination.

The LED emitters are mounted directly onto the metal base of the collimator which also features an integrated heat sink. This configuration minimizes thermal resistance between the LED emitter and the heat sink resulting in better heat dissipation. The collimating lens can be adjusted if needed for precise collimation. A locking ring fixes the lens position after adjustment. The collimators have been pre-adjusted in the factory.

Multi-chip LED emitters have been added to the product portfolio. Some of these 7W to 15W LEDs have total optical power exceeding 1W, quadrupling the power of a single-chip LED. Models with higher powers (7W and higher) feature a cooling fan, and have a different formfactor compared to other models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED collimator sources.

The LED collimators include a 1.5-meter cable with two bare-wire terminals at the end. The light sources can be driven by Mightex LED controllers or other LED controllers and current sources. An optional focusing module can be mounted on the front of the LED collimator to focus light into a tight spot which is an image of the LED emitter. One of the applications with the focusing module is coupling LED light into a fiber or a light guide.

Additional interchangeable collimating lenses are available to produce different beam sizes with the same light source.

Features

Interchangeable aspherical collimating lens

High numerical aperture (NA)

High power (up to 50W)

Wide range of available wavelengths

Adjustable focus

Optional focusing module

Optional lightguide adapter

Multiple mounting features for lab and OEM applications

Integrated heat sink

Cooling fan for >7W models

Applications

Microscope illuminator

General purpose light source

Fiber coupling (with optional focusing module)

Specifications

Type-A LCS (passively cooled with no cooling fan)
Type-B LCS (with a cooling fan)

Part Number	Type ² (A or B)	Wavelength(nm)	Half Diverging Angle(deg.)				I_op (mA)	V_op (V)	Typical Output Power(mW)³
Part Number	Type ² (A or B)	Wavelength(nm)	φ 11mm ¹	φ 22mm ¹	φ 38mm ¹	φ 48mm ¹	I_op (mA)	V_op (V)	Typical Output Power(mW)³
LCS-0365-04-xx	A	365	6.8	3.4	2	1.5	1000	3.65	350
LCS-0365-13-xx	B	365	6.8	3.4	2	1.5	3500	3.85	1200
LCS-0385-04-xx	A	385	6.8	3.4	2	1.5	1000	3.65	500
LCS-0385-07-xx	B	385	6.8	3.4	2	1.5	500	15	500
LCS-0385-11-xx	B	385	6.8	3.4	2	1.5	700	15.5	625
LCS-0385-13-xx	B	385	6.8	3.4	2	1.5	3500	3.75	1500
LCS-0395-03-xx	A	395	3.4	1.7	1	0.75	1000	3.1	270
LCS-0395-12-xx	B	395	6.8	3.4	2	1.5	1000	12.4	810
LCS-0400-01-xx	A	400	5	2.5	1.5	1.1	350	3.5	100
LCS-0400-03-xx	A	400	3.4	1.7	1	0.75	1000	3.1	265
LCS-0400-04-xx	A	400	3.4	1.7	1	0.75	1000	3.5	750
LCS-0400-12-xx	B	400	6.8	3.4	2	1.5	1000	12.4	795
LCS-0400-17-xx	B	400	10	5	3	2.2	1000	16.5	810
LCS-0405-03-xx	A	405	3.4	1.7	1	0.75	1000	3	325
LCS-0405-12-xx	B	405	6.8	3.4	2	1.5	1000	12	975
LCS-0410-03-xx	A	410	3.4	1.7	1	0.75	1000	3	315
LCS-0410-12-xx	B	410	6.8	3.4	2	1.5	1000	12	945
LCS-0415-03-xx	A	415	3.4	1.7	1	0.75	1000	3	310
LCS-0415-12-xx	B	415	6.8	3.4	2	1.5	1000	12	930
LCS-0430-02-xx	A	430	3.4	1.7	1	0.75	500	3.8	190
LCS-0455-03-xx	A	455	3.4	1.7	1	0.75	1000	3.0	500
LCS-0470-03-xx	A	470	3.4	1.7	1	0.75	1000	3.2	200
LCS-0470-15-xx	B	470	6.8	3.4	2	1.5	1000	15	600
LCS-0470-14-xx	B	470	3.4	1.7	1	0.75	3000	4.6	800
LCS-0471-02-xx	A	471	3.4	1.7	1	0.75	350	3	140
LCS-0490-01-xx	A	490	3.4	1.7	1	0.75	350	3.5	140
LCS-0505-03-xx	A	505	3.4	1.7	1	0.75	1000	3.9	135
LCS-0505-12-xx	B	505	6.8	3.4	2	1.5	1000	12.2	250
LCS-0530-03-xx	A	530	3.4	1.7	1	0.75	1000	2.85	200
LCS-0530-12-xx	B	530	2.8	1.4	0.85	0.65	2400	4.9	290
LCS-0530-15-xx	B	530	6.8	3.4	2	1.5	1000	15	300
LCS-0540-14-xx	B	540 broadband	4.4	2.2	1.3	1	3000	4.6	500
LCS-0560-03-xx	A	560 broadband	4.4	2.2	1.3	1	1000	2.9	240
LCS-0585-03-xx	A	585 broadband	4.4	2.2	1.3	1	700	2.9	82
LCS-0590-03-xx	A	590	3.4	1.7	1	0.75	1000	3.9	65
LCS-0590-05-xx	B	590	10	5	3	2.2	500	9.5	190
LCS-0617-02-xx	A	617	3.4	1.7	1	0.75	700	2.3	150
LCS-0617-10-xx	B	617	6.8	3.4	2	1.5	700	9.6	250
LCS-0625-03-xx	A	625	3.4	1.7	1	0.75	1000	3.9	180
LCS-0625-07-xx	B	625	6.8	3.4	2	1.5	700	9.6	300
LCS-0656-03-xx	A	656	3.4	1.7	1	0.75	1000	3.1	280
LCS-0656-07-xx	B	656	8.8	4.4	2.6	2	700	9.6	800
LCS-0680-02-xx	A	680	3.4	1.7	1	0.75	600	2.7	75
LCS-0700-01-xx	A	700	3.4	1.7	1	0.75	500	2.1	51
LCS-0720-01-xx	A	720	3.4	1.7	1	0.75	600	2.2	73
LCS-0740-03-xx	A	740	5	2.5	1.5	1.1	1000	2.5	200
LCS-0740-10-xx	B	740	10	5	3	2.2	1000	9.5	600
LCS-0780-02-xx	A	780	3.4	1.7	1	0.75	800	2.5	110
LCS-0810-02-xx	A	810	3.4	1.7	1	0.75	800	2.2	120
LCS-0850-03-xx	A	850, 3W	3.4	1.7	1	0.75	1000	3	430
LCS-0870-01-xx	A	870	3.4	1.7	1	0.75	700	1.9	110
LCS-0910-02-xx	A	910	3.4	1.7	1	0.75	1000	1.9	120
LCS-0940-02-xx	A	940	3.4	1.7	1	0.75	1000	1.8	200
LCS-0980-01-xx	A	980	3.4	1.7	1	0.75	500	1.4	30
LCS-6500-03-xx	A	glacier white 6,500K	3.4	1.7	1	0.75	1000	3.6	180
LCS-6500-15-xx	B	glacier white 6,500K	6.8	3.4	2	1.5	1000	15	540
LCS-5500-03-xx	A	cool white 5,500K	3.4	1.7	1	0.75	1000	3.9	170
LCS-5500-12-xx	B	cool white 5,500K	6.8	3.4	2	1.5	1000	12	540
LCS-4000-03-xx	A	warm white 4,000K	3.4	1.7	1	0.75	1000	3.9	180
LCS-3000-03-xx	A	warm white 3,000K	3.4	1.7	1	0.75	1000	2.8	150
LCS-3000-12-xx	B	warm white 3,000K	6.8	3.4	2	1.5	1000	12	430

1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number; and 2. Type-A and Type-B collimator sources have different installation drawings. Type-A does not include a cooling fan, whereas Type-B does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V. For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm. 3. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Type-J LCS (high power, passively cooled with no cooling fan)

Part Number	Type	Wavelength(nm)	Half Diverging Angle(deg.)				I_op (mA)	V_op (V)	Typical Output Power(mW)²
Part Number	Type	Wavelength(nm)	φ 11mm ¹	φ 22mm ¹	φ 38mm ¹	φ 48mm ¹	I_op (mA)	V_op (V)	Typical Output Power(mW)²
LCS-0365-13-22-J	J	365	NA	3.4	NA	NA	3500	3.85	1200
LCS-0470-14-22-J	J	470	NA	1.7	NA	NA	3000	4.6	860
LCS-0530-12-22-J	J	530	NA	1.4	NA	NA	2400	4.9	290
LCS-0540-14-22-J	J	540	NA	2.2	NA	NA	3000	4.6	500
LCS-0625-07-22-J	J	625	NA	1.4	NA	NA	2400	2.9	260

1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number. 2. Maximum CW output achievable with a BLS-3000-2 BioLED control module. 3. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Type-H LCS (high current, with a cooling fan)

Part Number	Type	Wavelength(nm)	Half Diverging Angle(deg.)			I_op (A)	V_op (V)	Typical Output Power(mW)²
Part Number	Type	Wavelength(nm)	φ 22mm ¹	φ 38mm ¹	φ 48mm¹	I_op (A)	V_op (V)	Typical Output Power(mW)²
LCS-0365-76-xx	H	365	5	3	2.2	18	4.2	10000
LCS-0405-65-xx	H	405	5	3	2.2	18	3.6	8300
LCS-0405-89-xx	H	405	5	3	2.2	24	3.7	9900
LCS-0415-65-xx	H	415	5	3	2.2	18	3.6	6000
LCS-0470-50-xx	H	470	5	3	2.2	13	3.8	6300
LCS-0470-61-xx	H	470	5	3	2.2	18	3.4	7500
LCS-0470-92-xx	H	470	5	3	2.2	27	3.4	9000
LCS-0525-60-xx	H	525	5	3	2.2	13	4.6	1300
LCS-0525-79-xx	H	525	5	3	2.2	18	4.4	1560
LCS-0560-68-xx	H	560 broadband	5	3	2.2	18	3.8	3500
LCS-0560-84-xx	H	560 broadband	5	3	2.2	22	3.8	3800
LCS-0625-38-xx	H	625	5	3	2.2	13	2.9	2700
LCS-0625-42-xx	H	625	5	3	2.2	18	2.3	3300
LCS-0730-77-xx	H	730	5	3	2.2	18	5.9	3500
LCS-0780-65-xx	H	780	5	3	2.2	18	3.6	4400
LCS-0850-68-xx	H	850	5	3	2.2	18	3.75	5500
LCS-6500-33-xx	H	glacier white, 6,500K	5	3	2.2	9	3.7	2000
LCS-6500-65-xx	H	glacier white, 6,500K	5	3	2.2	18	3.7	3500

1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number. 2. Maximum CW output achievable with a matching BLS-13000-1 or a BLS-18000-1 BioLED control module. 3. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Discontinued Parts

Part Number	Type ² (A or B)	Wavelength(nm)	Half Diverging Angle(deg.)				I_op (mA)	V_op (V)	Typical Output Power(mW)³
Part Number	Type ² (A or B)	Wavelength(nm)	φ 11mm ¹	φ 22mm ¹	φ 38mm ¹	φ 48mm ¹	I_op (mA)	V_op (V)	Typical Output Power(mW)³
LCS-0365-02-xx	A	365	3.4	1.7	1	0.75	500	3.8	80
LCS-0365-07-xx	B	365	6.8	3.4	2	1.5	500	15	400
LCS-0365-11-xx	B	365	6.8	3.4	2	1.5	700	15.8	500
LCS-0380-03-xx	A	380	3.4	1.7	1	0.75	1000	3.2	120
LCS-0380-13-xx	B	380	6.8	3.4	2	1.5	1000	12.8	360
LCS-0385-02-xx	A	385	3.4	1.7	1	0.75	500	3.8	100
LCS-0390-03-xx	A	390	3.4	1.7	1	0.75	1000	3.1	250
LCS-0390-12-xx	B	390	6.8	3.4	2	1.5	1000	12.4	750
LCS-0400-05-xx	A	400	5	2.5	1.5	1.1	1000	4.1	240
LCS-0420-02-xx	A	420	3.4	1.7	1	0.75	700	3	100
LCS-0420-03-xx	A	420	3.4	1.7	1	0.75	1000	3	310
LCS-0420-12-xx	B	420	6.8	3.4	2	1.5	1000	12	930
LCS-0425-03-xx	A	425	3.4	1.7	1	0.75	1000	3	290
LCS-0425-12-xx	B	425	6.8	3.4	2	1.5	1000	12	870
LCS-0455-05-xx	A	455	10	5	3	2.2	700	6.8	350
LCS-0490-03-xx	A	490	5	2.5	1.5	1.1	700	3.7	120
LCS-0530-13-22	B	530	2.8	1.4	0.85	0.65	2400	4.9	290
LCS-0530-13-22-J	J	530	NA	1.4	NA	NA	2400	4.9	290
LCS-0560-02-xx	A	560 broadband	3.4	1.7	1	0.75	700	2.9	180
LCS-0590-10-xx	B	590	10	5	3	2.2	1000	10	200
LCS-0617-03-xx	A	617	3.4	1.7	1	0.75	1000	3.9	150
LCS-0657-01-xx	A	657	5	2.5	1.5	1.1	350	2.4	100
LCS-0850-02-xx	A	850, 2W	3.4	1.7	1	0.75	1000	2.1	240
