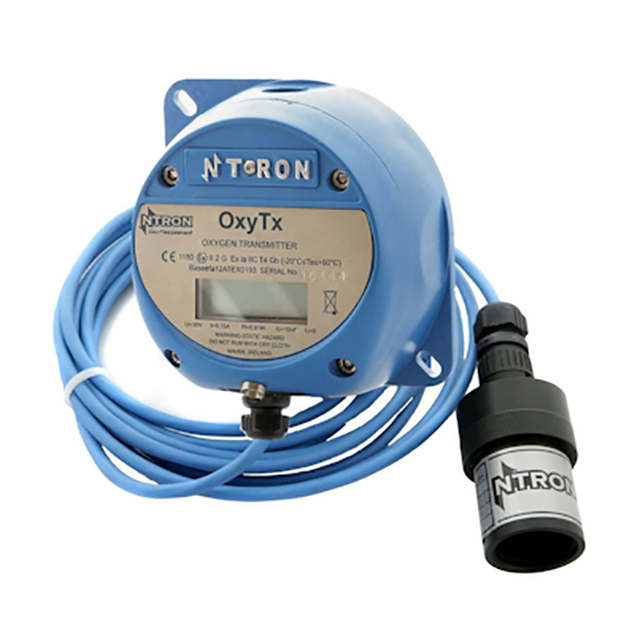

Remote Oxygen Sensor for Easy Installation and Maintenance
Features
ATEX approved for use in hazardous areas
Certified to EEx ia IIC T4, ATEX II 2 G
Large LCD display for local % or ppm oxygen concentration readout
Intrinsically safe device with an IP66 ABS housing
Analog 4-20mA output for retransmission of measured signal
Remote mounted oxygen sensor for ease of use and maintenance
Non intrusive user calibration by push buttons
7-30VDC operating power
The OxyTx Oxygen Analyzer and Transmitter is a low-cost compact and rugged device for measurement of % Oxygen concentration in Hazardous area applications. The OxyTx has a surface or wall mounted control unit and a remote sensor with inter-connecting lead. Typical applications include pharmaceuticals, gas generation, chemical, food & beverage, biotech and process industries. The OxyTx can also be used as ATEX rated ambient monitor.
Specifications
| Performance | |
| Gas type/range | Oxygen/0-25%, 0-1% |
| Power requirements | 7-30VDC 2 wire loop |
| Analog output | 4-20mA current loop powered |
| Environmental rating | IP66 |
| Dimensions | 122mm x 122mm x 75mm |
| Response time | T90 <10s |
| Resolution | 0.1 oxygen |
| Weight | 800g |
| Certification | ATEX II 2 G EEx ia II C T4 |
