US Letter Datasheet A4 Datasheet User's Manual

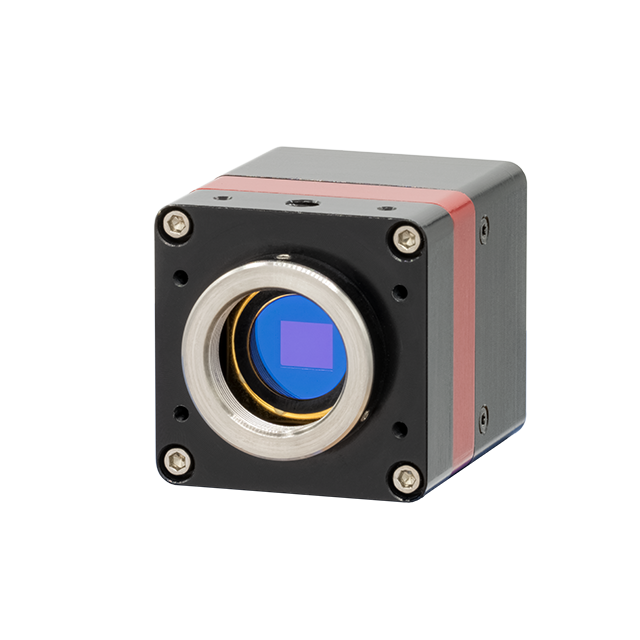

The Owl 320 HS offers the fastest frame rates available in the Owl camera line-up (up to 349Hz in full frame resolution), perfect for high speed VIS-SWIR applications (0.6μm – 1.7μm). With Region of Interest (ROI) control, faster frame rates in the kHz region are achievable by setting smaller ROIs.
Featuring a State of the Art high sensitivity InGaAs sensor, the camera offers a full-frame pixel resolution of 320 x 256, with a pixel pitch of 30μm x 30μm.
Key Features
SWIR technology | Enables high-speed imaging from 0.6μm to 1.7μm
Easy control of camera parameters | Control of Exposure, Frame rate, Gain, Temperature, trigger, etc
Ultra compact, Low power (< 5W) | Ideal for hand-held, mobile or airborne systems
Rugged, No fan | Enables integration into UAV, handheld or Electro-Optic systems
Applications
Astronomy
Beam Profiling
Hyperspectral Imaging
Semiconductor Inspection
Solar Cell Inspection
Thermography

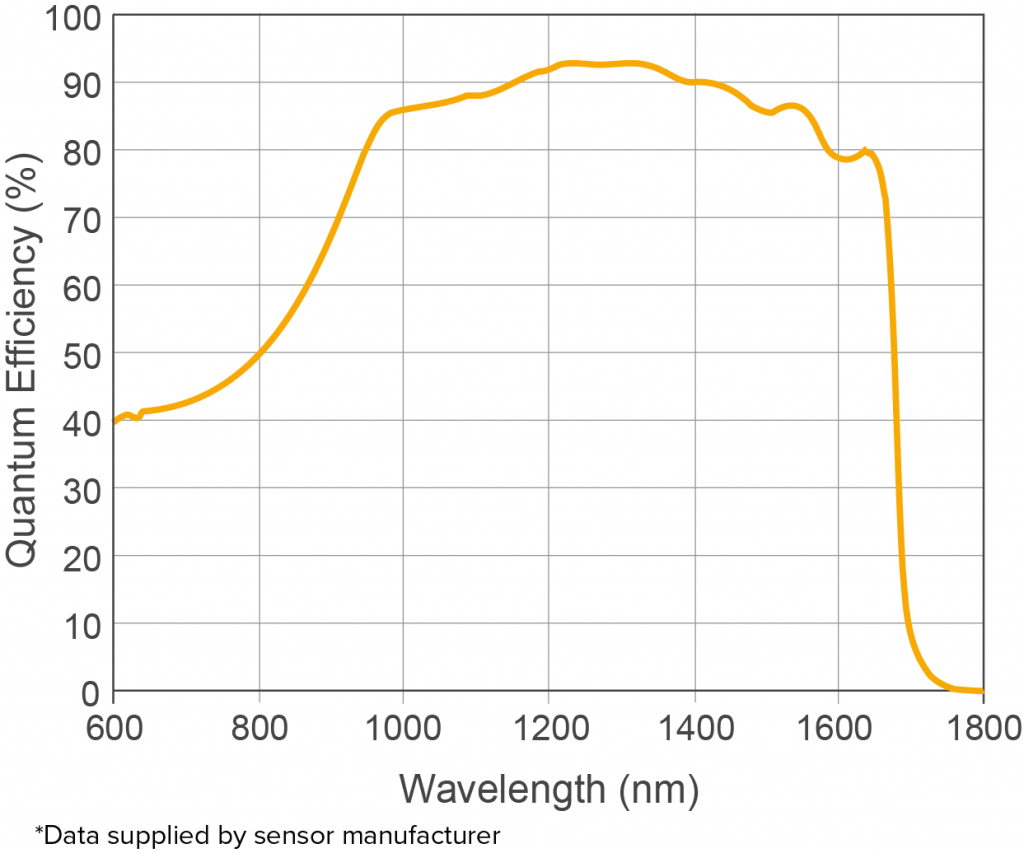

QE Curves
