Precision LED Spotlights with Uniform Illumination – Close Range

Updated:2025-03-13

Brand: Mightex
Model: PLS- series
Description: Mightex’s PLS- series precision LED spotlights are a general-purpose light source that can be used where uniform and high-intensity illumination is required. State-of-the-art high-power LED emitter an
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Precision LED Spotlights with Uniform Illumination – Close Range Description：

Datasheet

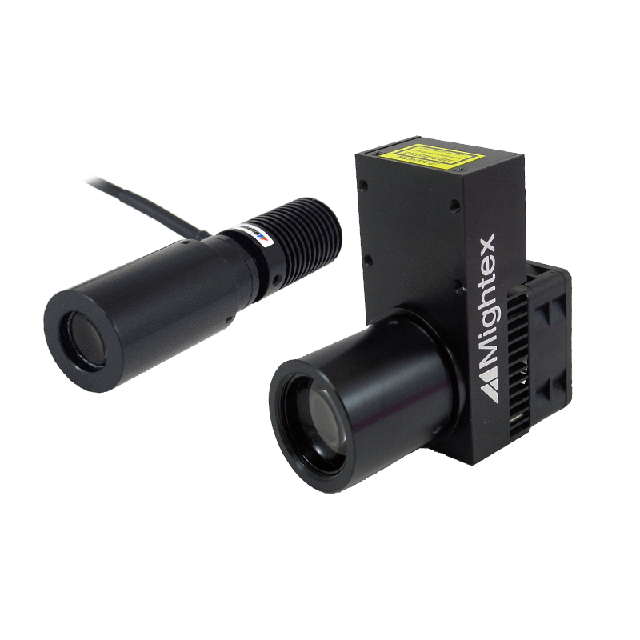

Mightex’s precision LED spotlight consists of a state-of-the-art high-power LED emitter and a proprietary high-NA multi-element aspherical optical system. The result is a high-power, uniform illumination spot with a highly-delineated edge.

Mightex’s PLS- series precision LED spotlights are a general-purpose light source that can be used where uniform and high-intensity illumination is required. The projection lens at the front of the spotlight can be slid and locked to focus the illumination pattern at different working distances. With the standard projection lens, the spot diameter is linearly proportional to working distance.

The LED emitters are mounted directly on the metal base of the light source which also features an integrated heatsink. This configuration minimizes thermal resistance between the LED emitter and the heatsink, resulting in better heat dissipation.

Multi-chip LED emitters (i.e. Type-B) have been added to the product portfolio. Some of these 7W to 15W LEDs have total optical power exceeding 500mW, doubling the power of a single-chip LED. Such Type-B models with higher powers (7W and higher) feature a cooling fan, and have a different form factor compared to Type-A models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the Type-B precision LED spotlights.

The precision LED spotlight includes a 2-meter cable with two bare-wire terminals at the end. The light sources can be driven by Mightex LED controllers or other LED controllers and current sources.

Features:

Uniform illumination spot with a highly delineated edge

High output power

Multi-element aspherical optics

Wide range of available wavelengths

Adjustable focus

Multiple mounting features for lab and OEM applications

Integrated heatsink

Applications:

General purpose light source

Machine vision

Bio-photonics

Semiconductor equipment

UV curing

Specifications:

Type-A and Type-B PLS

Part Number	Type (A or B) ¹	Wavelength (nm)	I_op (mA)	V_op (V)	Typical Output Power (mW) ²
PLS-0340-010-02-C	A	340	350	4.3	11
PLS-0365-010-04-C	A	365	1000	3.65	180
PLS-0365-010-13-C	B	365	3500	3.85	720
PLS-0380-010-03-C	A	380	1000	3.2	65
PLS-0385-010-04-C	A	385	1000	3.65	250
PLS-0385-010-07-C	B	385	500	15	300
PLS-0385-010-11-C	B	385	700	15.5	375
PLS-0385-010-13-C	B	385	3500	3.75	900
PLS-0390-010-03-C	A	390	1000	3.1	140
PLS-0395-010-03-C	A	395	1000	3.1	150
PLS-0400-010-03-C	A	400	1000	3.1	150
PLS-0400-010-04-C	A	400	1000	3.5	380
PLS-0400-010-17-C	B	400	1000	16.6	400
PLS-0405-010-03-C	A	405	1000	3.1	180
PLS-0410-010-03-C	A	410	1000	3.1	175
PLS-0415-010-03-C	A	415	1000	3.1	120
PLS-0430-010-02-C	A	430	500	3.8	100
PLS-0455-010-C	A	455	1000	3.0	260
PLS-0470-010-C	A	470	1000	3.9	110
PLS-0470-010-14-C	B	470	3000	4.6	650
PLS-0470-010-15-C	B	470	1000	15	450
PLS-0471-010-02-C	A	471	350	3	75
PLS-0490-010-01-C	A	490	350	3.5	80
PLS-0505-010-C	A	505	1000	3.9	65
PLS-0505-010-12-C	B	505	1000	12.2	185
PLS-0530-010-C	A	530	1000	2.85	100
PLS-0530-010-15-C	B	530	1000	15	200
PLS-0540-010-14-C	B	540 broadband	3000	4.6	260
PLS-0560-010-02-C	A	560 broadband	700	2.9	95
PLS-0590-010-C	A	590	1000	3.9	35
PLS-0590-010-05-C	B	590	500	9.5	130
PLS-0617-010-C	A	617	1000	3.9	80
PLS-0617-010-10-C	B	617	1000	10.8	200
PLS-0625-010-C	A	625	1000	3.9	90
PLS-0625-010-07-C	B	625	700	9.6	155
PLS-0656-010-C	A	656	1000	3.9	180
PLS-0656-010-07-C	B	656	700	9.6	420
PLS-0680-010-02-C	A	680	600	2.7	20
PLS-0700-010-01-C	A	700	500	2.1	27
PLS-0720-010-01-C	A	720	600	2.2	39
PLS-0740-010-03-C	A	740	1000	2.5	100
PLS-0740-010-10-C	B	740	1000	9.5	300
PLS-0780-010-C	A	780	800	2.5	60
PLS-0810-010-02-C	A	810	800	2.2	65
PLS-0850-010-03-C	A	850, 3W	1000	3	220
PLS-0870-010-01-C	A	870	700	1.9	60
PLS-0910-010-02-C	A	910	1000	1.9	60
PLS-0940-010-C	A	940	700	1.5	50
PLS-0980-010-01-C	A	980	500	1.4	16
PLS-6500-010-C	A	Glacier white 6,500K	1000	3.6	100
PLS-6500-010-15-C	B	Glacier white 6,500K	1000	15	400
PLS-5500-010-C	A	Cool white 5,500K	1000	3.9	85
PLS-5500-010-12-C	B	Cool white 5,500K	1000	12	400
PLS-4000-010-C	A	Warm white 4,000K	1000	3.9	85
PLS-3000-010-C	A	Warm white 3,000K	1000	2.8	70
PLS-3000-010-12-C	B	Warm white 3,000K	1000	12	320

Type-A and Type-B LED sources have different installation drawings. The former does not include a cooling fan, whereas the latter does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V (P/N: ACC-SLC-24VU). For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm. 2. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary.

Type-H PLS

Part Number	Wavelength (nm)	I_op (A)	V_op (V)	Typical Output Power (mW) ¹
PLS-0365-010-76-C	365	18	4.2	640
PLS-0405-010-65-C	405	18	3.6	420
PLS-0405-010-89-C	405	24	3.7	500
PLS-0470-010-50-C	470	13	3.8	630
PLS-0470-010-61-C	470	18	3.4	750
PLS-0470-010-92-C	470	27	3.4	900
PLS-0525-010-60-C	525	13	4.6	240
PLS-0525-010-79-C	525	18	4.4	280
PLS-0560-010-68-C	560 broadband	18	3.8	950
PLS-0560-010-84-C	560 broadband	22	3.8	1000
PLS-0625-010-38-C	625	13	2.9	490
PLS-0625-010-42-C	625	18	2.3	600
PLS-0730-010-77-C	730	18	5.9	650
PLS-6500-010-33-C	Glacier white 6,500K	9	3.7	400
PLS-6500-010-65-C	Glacier white 6,500K	18	3.7	680

Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Discontinued Parts

Part Number	Type (A or B) ¹	Wavelength (nm)	I_op (mA)	V_op (V)	Typical Output Power (mW) ²
PLS-0365-010-C	A	365	500	3.8	115
PLS-0365-010-07-C	B	365	500	15	250
PLS-0365-010-11-C	B	365	700	15.8	310
PLS-0365-010-48-C	H	365	12000	3.9	320
PLS-0385-010-C	A	385	500	3.8	50
PLS-0400-010-05-C	A	400	1000	4.1	120
PLS-0405-010-50-C	H	405	13000	3.8	390
PLS-0420-010-C	A	420	500	3.8	35
PLS-0420-010-03-C	A	420	1000	3.1	120
PLS-0420-010-12-C	B	420	1000	12	500
PLS-0425-010-03-C	A	425	1000	3	160
PLS-0590-010-10-C	B	590	1000	10	140
PLS-0657-010-C	A	657	350	2.4	50
PLS-0850-010-C	A	850, 2W	1000	2.1	85
