Datasheet 1 Datasheet 2 User's Manual

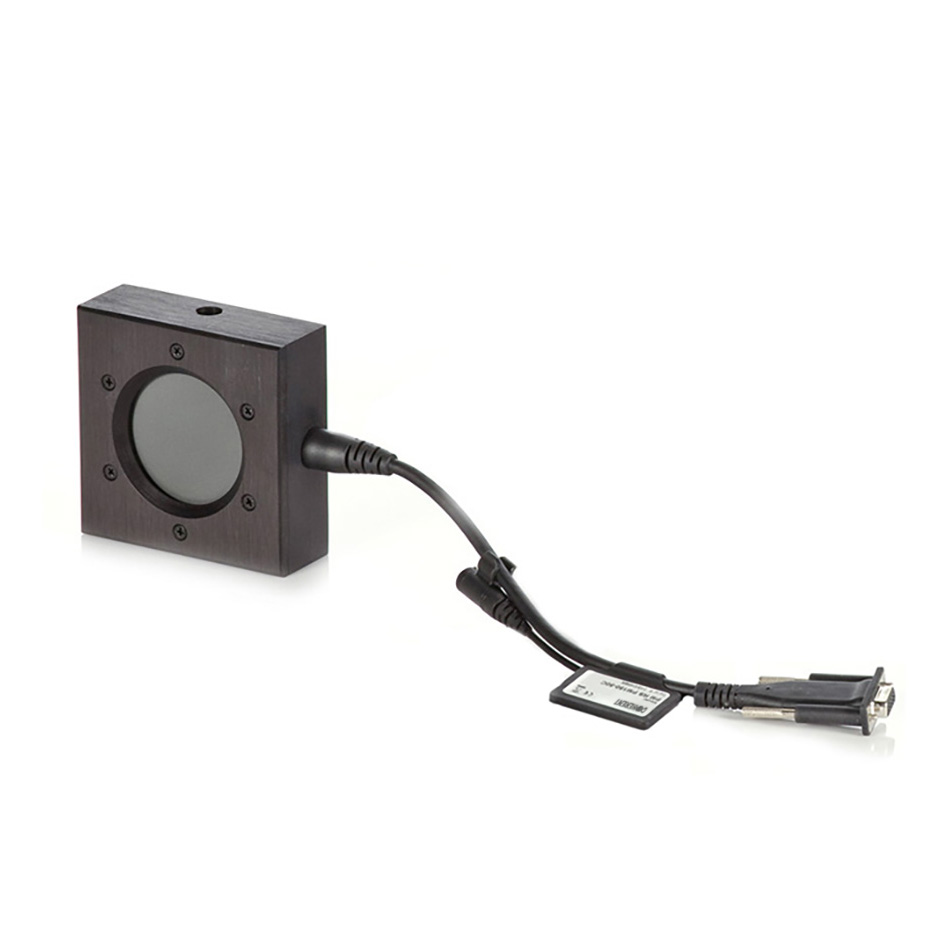

This PowerMax-RS PM150-50C sensor is a water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 80W without water for short durations (up to five minutes at a time). This sensor model is also very commonly used for individual long-pulse energy measurements up to 150J.
The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098412) and USB direct (PN 1168348) models are available.
Water-cooled thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 80W without water, intermittently, for up to five minutes. Direct RS232 interface.
Key Features:
300 mW to 150W range
50 mm diameter active area
Spectrally flat broadband coating
0.19 to 11 μm spectral range
Water-cooled
ISO 17025 accredited
Direct RS232 interface
Specifications
