Datasheet User's Manual

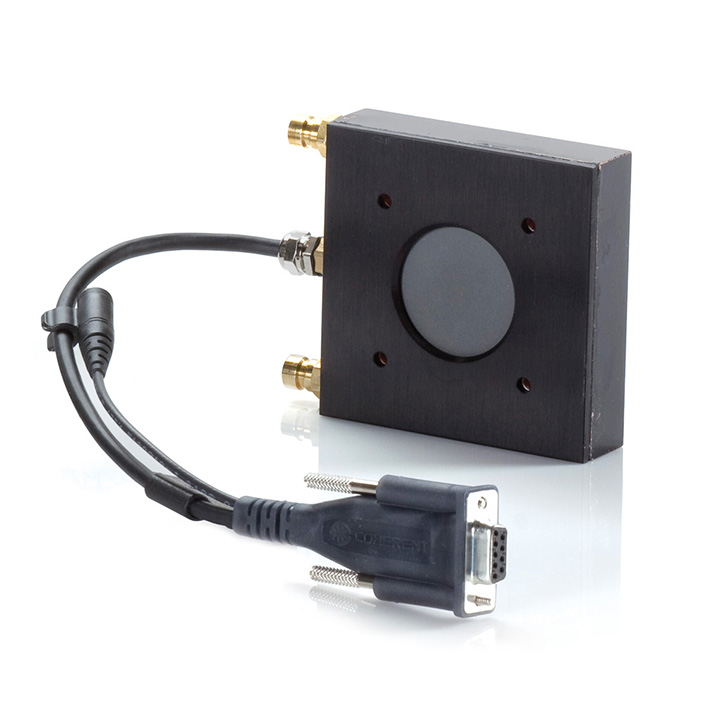

This compact PowerMax-RS PM1K-36C sensor is a compact, water-cooled kW laser power sensor intended for measuring lasers up to 1000W. Its compact configuration makes it ideal for OEM integration inside higher power laser systems.
The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A USB direct (PN 1174266) model is available.
The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.
Compact, water-cooled kW thermopile sensor for measuring lasers between 100W and 1000W. RS232 direct interface.
Key Features:
50W to 1000W range
36 mm diameter active area
Spectrally flat broadband coating
25 to 11 μm spectral range
Water-cooled
RS232 direct interface
ISO 17025 accredited
Specifications
