Datasheet 1 Datasheet 2 User's Manual

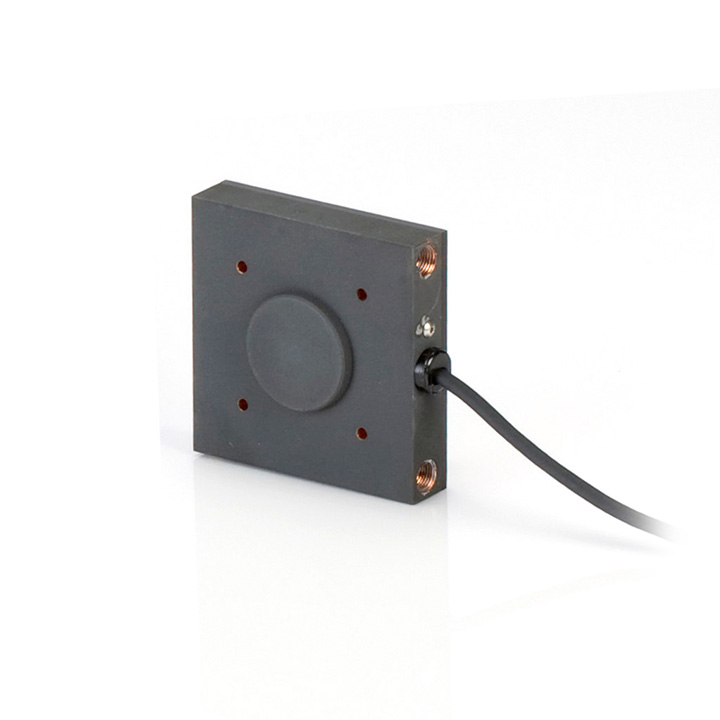

This PowerMax-USB BeamFinder sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098427) is available.
These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.
Water-cooled thermopile for measuring lasers up to 1000W, with beam position measurement, in a compact OEM package. Direct USB interface.
Key Features:
50W to 1000W range
35 mm diameter active area
Beam position measurement
Spectrally flat broadband coating
Compact OEM sensor
0.25 to 10.6 μm spectral range
Water-cooled
Direct USB interface
ISO 17025 accredited
Specifications
