Datasheet

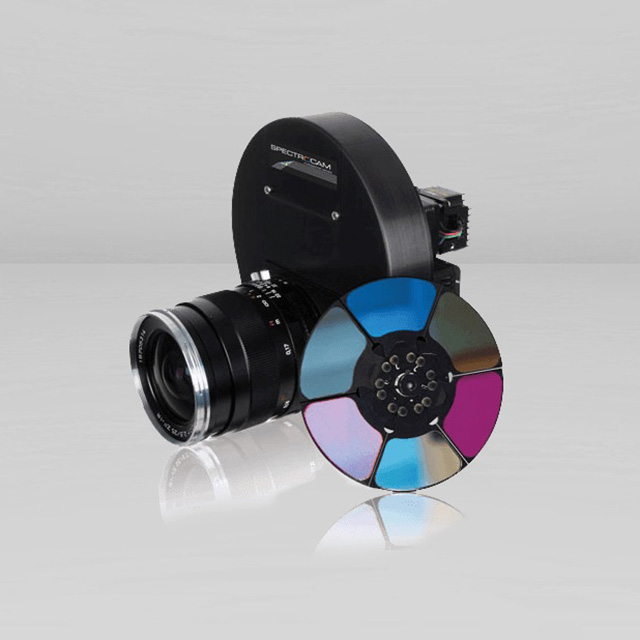

The SpectroCam? Vis High Resolution utilizes the JAI 5MP GO Series CMOS camera. This high-resolution multispectral camera allows users with the proper filters to see objects' reflected spectra from 400nm to 1000nm.
Applications across multiple segments include medical imaging, food and agriculture sorting, process line inspection, and colorimetric imaging.
Key Features
Sequential 6-8 band multispectral imaging
Full frame resolution at up to 25 frames/second
Interchangeable standard & custom spectral filters
Intuitive acquisition software
High-speed digital video output
OEM Customizations
Application-specific multispectral engine
Easy modular device integration
Optimized spectral bands & imaging
Proof of concept to high-volume production
Technical Specifications
| Spectral Response | 400nm to 1000nm (VIS+NIR) |
| Resolution | 2464x2056 px |
| Sensor |
CMOS, Silicon, 5MP 3.45μm Pixel Pitch |
| Spectral Bands | 8 Filters |
| Active Area | 8.5mm(H)x 7.09mm(V) 11.1mm(D) |
| Frame Rate | 22.7fps |
| Optical Interface | F-Mount standard (Manual Aperture & Focus), Range of Lenses Available, Adapters Available Upon Request |
| Digital Output | Gig-E Vision |
| Dimensions (No Lens or Mount) | 136mm(H)x124mm(W)x105mm(D) |
| Weight | 680g |
