User's Manual

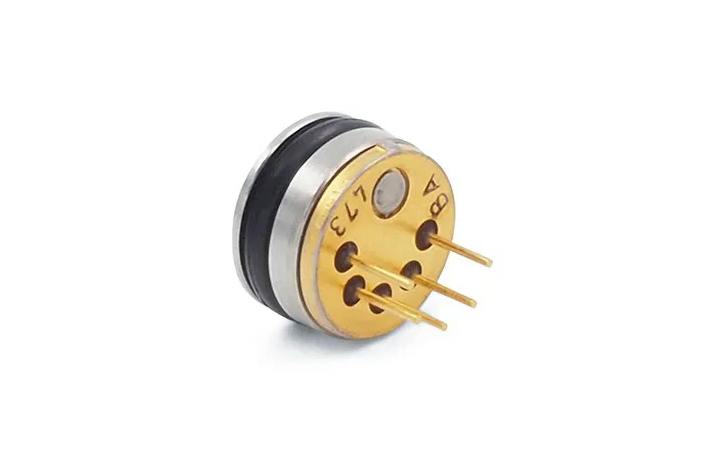

The pressure transducers of the 3L series have a small and compact design, making them ideally suited to OEM applications with limited installation space. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
Pressure Ranges：0...20 to 0...200
Accuracy：± 0,5 %FS
Long Term Stability：± 0,5 %FS
Dimensions：? 9,5 mm x 4,2 mm
Temperature Range：0...50 °C

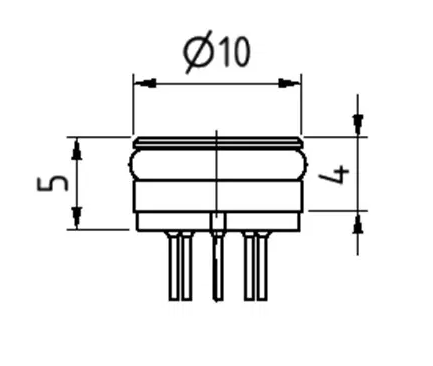

Sketch
